Descrição

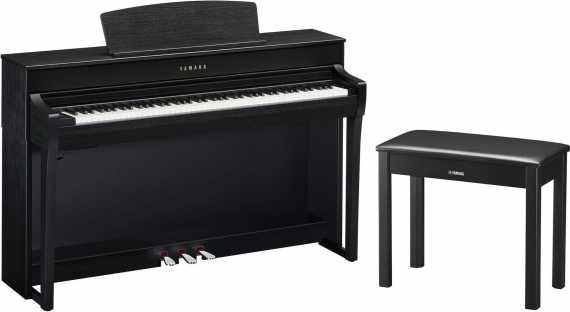

CLP-745
Size/Weight
Dimensions Width 1,461 mm (57-1/2") [Polished finish: 1,466 mm (57-11/16")]
Height 927 mm (36-1/2") [Polished finish: 930 mm (36-5/8")]
Depth 459 mm (18-1/16") [Polished finish: 459 mm (18-1/16")]
Weight Weight 60 kg (132 lb, 4 oz) [Polished finish: 63 kg (138 lb, 14 oz)]
Control Interface
Keyboard Number of Keys 88
Tipo GrandTouch-S™ keyboard: wooden keys (white only), synthetic ebony and ivory keytops, escapement
Touch Sensitivity Hard2/Hard1/Medium/Soft1/Soft2/Fixed
88-key Linear Graded Hammers -
Counterweight -
Pedal Number of Pedals 3: Damper (with half-pedal function), Sostenuto, Soft
Functions Sustain (Switch), Sustain Continuously, Sostenuto, Soft, Pitch Bend Up, Pitch Bend Down, Rotary Speed, Vibe Rotor, Song Play/Pause
GP Response Damper Pedal -
Display Tipo Full Dots LCD
Size 128 x 64 dots
Language English, Japanese
Panel Type Buttons
Language English
Cabinet
Key Cover Key Cover Style Sliding
Music Rest Yes
Music Braces Yes
Voices
Tone Generation Piano Sound Yamaha CFX, Bösendorfer Imperial
Binaural Sampling Yes (CFX Grand and Bösendorfer voices only)
Key-off Samples Yes
Smooth Release Yes
VRM Yes
Grand Expression Modeling Yes
Polyphony Number of Polyphony (Max.) 256
Preset Number of Voices 38
Compatibility -
Effects
Types Reverb 6
Chorus 3
Brilliance 7+ User
Master Effect 12
Intelligent Acoustic Control (IAC) Yes
Stereophonic Optimizer Yes
Functions Dual/Layers Yes
Split Yes
Duo Yes
Songs
Preset Number of Preset Songs 21 voice demo songs + 50 classics + 303 lesson songs
Recording Number of Songs 250
Number of Tracks 16
Data Capacity approx. 500 KB/Song
Compatible Data Format Playback SMF (Format 0, Format 1)
Recording SMF (Format 0)
Functions
Piano Room Yes
USB Audio Recorder Playback .wav (44.1 kHz sample rate, 16-bit resolution, stereo)
Recording .wav (44.1 kHz sample rate, 16-bit resolution, stereo)
Overall Controls Metronome Yes
Tempo Range 5 - 500
Transpose -12 - 0 - +12
Tuning 414.8 - 440.0 - 466.8 Hz (approx. 0.2 Hz increments)
Scale Type 7 types
Rhythm 20
Bluetooth Audio/MIDI (varies by country)
Storage and Connectivity
Storage Internal Memory Total maximum size approx. 1.4 MB
External Drives USB flash drive
Extensive Connection Headphones Standard stereo phone jack (x 2)
MIDI [IN] [OUT] [THRU]
AUX IN Stereo Mini
AUX OUT [L/L+R] [R]
AUX Pedal -
USB TO DEVICE Yes
USB TO HOST Yes
DC IN 24 V
Amplifiers and Speakers
Amplifiers (50 W + 50 W) x 2
Speakers (16 cm + 8 cm) x 2
Power Supply
Power Consumption 40 W (When using PA-500 AC adaptor)
Auto Power Off Yes
Power Supply Adaptors PA-500
Acessórios
Acessórios Owner’s Manual, “50 Classical Music Masterpieces” Music Book, Online Member Product Registration, Warranty*, Bench*, Power cord*/AC adaptor* PA-500 *varies by area
